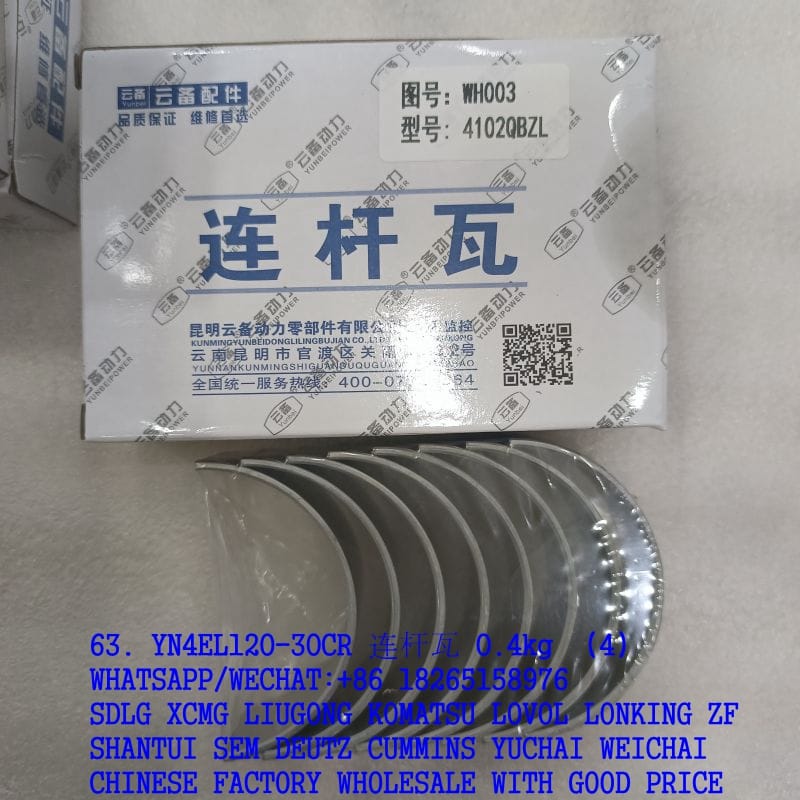

GENUINE YUNNEI POWER YN4EL120-30CR/YN4102 DIESEL ENGINE MAIN BEARING WH003 4102QB FROM CHINESE FACTORY WITH CHEAP PRICE

调温器总成 Thermostat
1 4110001028010 节温器座盖6QA6-1303011B Cover 1
2 4110001026026 螺栓M8X22 Q1840822TF2 Bolt 2
3 4110002649042 节温器盖垫片 6105Q-1306006 Gasket 1
4 4110001953011 调温器J8000-1306004 Thermostat 1
5 4110003445147 调温器座J8L00-1306003 Seat 1
6 4110003445148 回水胶管J80GD-1306005 Return hose 1
7 4110000560335 环箍 45 Q67645 Clamp 2
8 4110003445149 调温器座垫片D7100-1306006 Gasket 1
9 4110000179089 六角法兰面螺栓Q1840820 Screw 3
水泵总成 Water pump assembly
1 4110001058093 螺栓M10X28 Q150B1028 Screw 4
2 4110000560298 垫圈 10 Q40110 Washer 4
4 4110004049028 水泵J80GD-1307100SF2 Water pump 1
5 4110000560331 螺塞 NPT3/8 Q618B03 Plug 1
6 4110002942008 风扇皮带YC80-8PK-1680B Fan belt 1
风扇总成 Radiator fan assembly
1 4110001044275 螺栓M10X90 Q1841090TF2 Screw 4
2 4110000561057 风扇398-1308010A Fan 1
3 4110003445151 垫块B9805-1308102 Block 1
4 4110000561261 六角法兰面螺栓 M12×30 Q1841230TF2 Screw 4
5 4110003445152 垫块A9AF0-1308102 Block 1
6 4110003445153 风扇轴部件J7N00-1308300 Fan shaft 1
7 4110003445125 螺栓M8X30Q1840830TF2 Screw 4
8 4110003445154 水泵垫片J99G4-1307008 Gasket 1
9 4110003377076 锁紧块J80GD-1308341 Lock piece 1
10 4110001044129 螺栓M8X40Q1840840TF2 Screw 1
动力输出总成 Flywheel assembly
1 4110000560345 圆柱销YC24-B1224 Pin 1
2 4110000561261 六角法兰面螺栓 M12×30 Q1841230TF2 Screw 3
3 4110000560340 油封 100×125 YC209-100125FL Sealing ring 1
4 4110000560288 螺栓 M12×50 Q1841250TF2 Screw 3
5 4110000561178 盖板-飞轮壳6QA1-1600016 Cover plate 1
6 4110000560296 垫圈6 Q40106 Washer 1
7 4110002152006 弹簧垫圈Q40306 Spring washer 1
8 4110000560250 螺栓 M6×12 Q150B0612 Screw 1
9 4110000560077 扁销6105Q-1600011 Pin 1
10 4110000560238 螺塞 M18X1. 5 Q/YC198-18 Plug 1
11 4110000560229 复合式密封垫圈 18 Q/YC149-18 Sealing ring 1
12 4110000561314 飞轮壳1640H-1600401A Flywheel housing 1
13 4110000560289 螺栓 M14×50 Q1841450TF2 Screw 2
14 4110000561280 内六角锥形螺塞 NPT3/4 Q61906 Plug 1
15 4110004049029 飞轮及齿圈组件B9D00-1005360 Flywheel 1
16 4110000561177 飞轮螺栓6QA1-1005044A Screw 7
