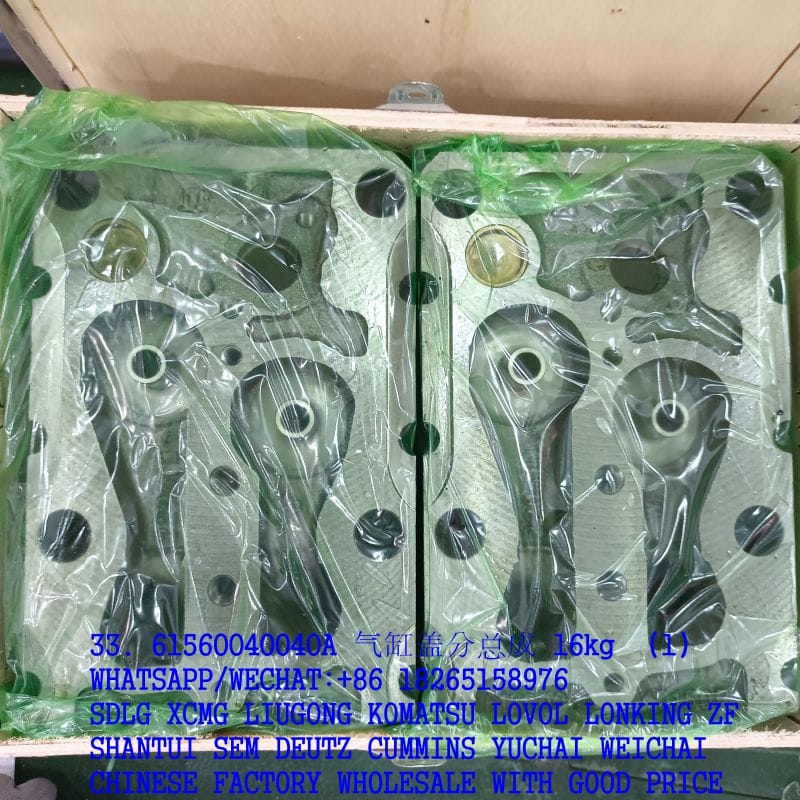

WEICHAI WD615 ENGINE 61560040040A CYLINDER HEAD VG14040065 61500040099A 612600040167 FOR SINOTRUK HOWO A7 TRUCK PARTS

锁紧油缸总成 Hydraulic cylinder
1 4120005090 直角接头1CO9-16-06OG Nipple 2
2 4120005183 软管20491-18-06TZ/20411-16-06TZ×FC687- Hose assembly 1
3 4011000081 螺栓GB5783-M10*20EpZn-8. 8 Bolt 2
4 4015000162 垫圈GB97. 1-10EpZn-300HV Washer 2
5 26370001921 管夹 Clamp 4
6 4120005184 软管20491-18-06TZ/20411-16-06TZ×FC687- Hose assembly 1
7 29310000071 橡胶套 Rubber sleeve 1
Working hydraulic system 206
铰接转向总成 Cylinder assembly
2 4120004872 软管20411-22-06TZ/20441-22-06TZ- Hose assembly 2
3 4120002235 接头GE15LREDOMDCF Nipple 4
4 4011000702 螺栓GB5783-M8*50EpZn-8. 8 Bolt 2
5 4015000072 垫圈GB97. 1-8EpZn-300HV Washer 2
6 4120005373 平衡阀H5060N403S0400 Control valve 1
7 4190000269 三通接头EL15LOMDA3C Three-way nipple 2
8 4120006679 软管20411-22-06TZ/20491-22-06TZ*FC687- Hose assembly 2
9 4120006680 软管20411-22-06TZ/20441-22-06TZ*FC687- Hose assembly Y 2
10 4019000023 扎丝 LG13-ZS4*185 Cable tie 10
11 4190000139 接头EW15LOMDA3C Nipple 4
12 4120003637 直通接头1CO-22-08 Nipple 4
13 4120004770 铰接转向油缸 115*50*303-610 Steering cylinder 2
14 28120004561 螺杆-M12 Lock rod 3
15 4013000011 3
16 4015000168 3
17 28120002531 盖板 1
18 28120002551 橡胶板 2
19 28120002541 橡胶板 Rubber clamp 1
Working hydraulic system 208
铰接转向油缸(3713CH) Steering cylinder
1 4120004770007 活塞杆总成24A610060 Piston rod 1
2 4120005996005 密封件-防尘24D205002 Sealing ring 1
3 4120001153026 钢丝挡圈-孔用24C001090 D65. 6*2t Retaining ring 1
4 4120004762009 密封件-活塞杆24FA05061 Sealing ring 1
5 4120004770009 O形圈24K311531 O-ring 1
6 4120004770010 支承环24G305031 Sealing ring 1
7 4120004770011 O形圈24K111009 O-ring 1
8 4120004770012 挡圈-O形圈24M11150D O-ring 1
10 4120004770013 缸盖24A670010 Cover 1
11 4120004770014 缸体24A630040 Cylinder tube 1
12 4120004770015 活塞24A680020 Piston 1
13 4120005168014 O形圈24K305021 O-ring 1
14 4120004770017 支承环24G211511 Sealing ring 2
15 4120004770018 1
16 4120005331007 1
17 4120006316009 1
18 4120004770019 1
