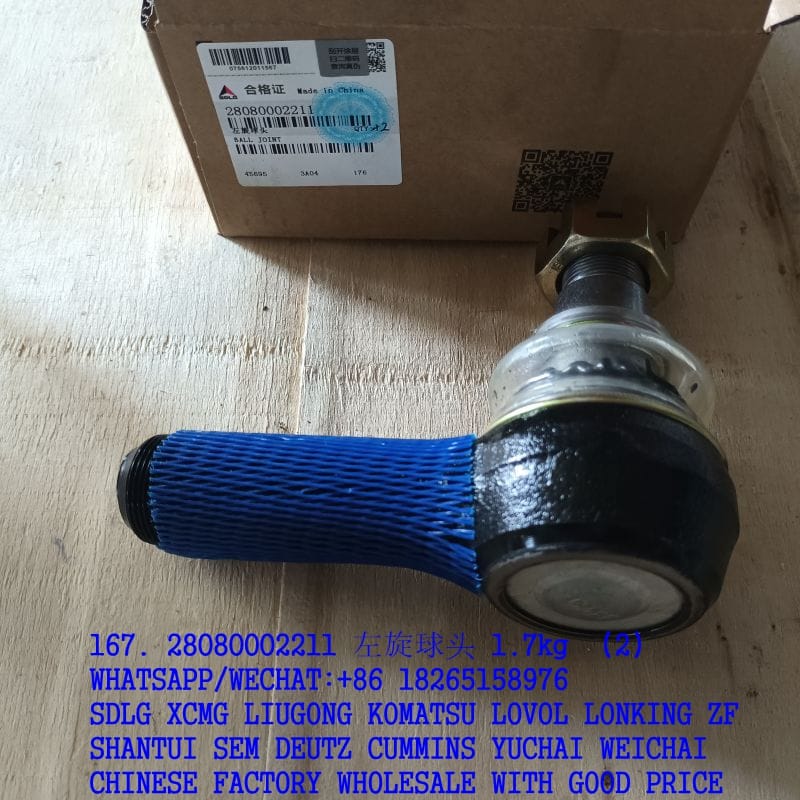

28080002211 sdlg g9190 left ball joint g9185/g9220 motor grader spare parts

Implement hydraulic system 166
动臂油缸(3713CH) Boomcylinder
1 4120005979002 缸筒总成24A138950 Cylinder tube 1
2 4120005979003 活塞杆总成24A114010 Piston rod 1
3 4120007051003 缸盖24C101020 Cover 1
4 4120006315004 衬套24S270301 CSB-40 7030 Bushing 1
5 4120007051004 钢丝挡圈-孔用24C090170 Retaining ring 1
6 4120000867033 密封件-缓冲24H007004 Sealing ring 1
7 4120007051005 密封件-活塞杆24F207003 Sealing ring 1
8 4120008123002 挡圈-U形圈24E00701C Retaining ring 1
9 4120000867036 密封件-防尘24D207002 Sealing ring 1
10 4120007051007 钢丝挡圈-孔用24C090200 Retaining ring 1
11 4120007051008 O形圈24K01150A O-ring 1
12 4120008123003 挡圈-O形圈24M01250C O-ring 1
13 4120006672011 O形圈24K312501 Sealing ring 1
14 4120007051011 活塞24C106170 Piston 1
15 4120006672014 1
16 4120007051012 1
17 4120008123004 1
18 4120007051014 2
19 4120006603018 钢球24U004001 Ball 1
20 4120006316010 螺钉-内六角凹端紧定24T906121 M6*12L Screw 1
21 4120007051015 轴套24C116100 Bushing 1
22 4120007051016 销边防尘24R306040 Sealing ring 2
23 4120006000010 螺钉-内六角圆柱头24T514555 M14*55L Screw 12
24 4120006315008 固定座24C003010 Seat 1
25 4120005979001 密封件维修包24A103060S Sealing kit 1
Implement hydraulic system 168
转斗缸总成 Tilt cylinder system
1 29140023061 放平护板 Indicator plate 1
2 4011001238 螺栓GB5783-M10*20flZnyc-8. 8-480 Screw 4
3 4015000433 垫圈GB97. 1-10flZnyc-300HV-480 Washer 4
4 4120008483 转斗油缸HSGF-140*80*502-952A Tilt cylinder 1
5 29140015121 前盖板 Cover plate 1
6 4011001246 螺栓GB5783-M8*16flZnyc-8. 8-480 Screw 4
7 4015000425 垫圈GB96. 1-8flZnyc-300HV-480 Washer 4
8 4011001300 螺栓GB16674. 1-M10*30flZnyc-8. 8-480 Screw 24
9 4041000715 分体法兰LGB117-306401 Flange half 2
10 4011001249 螺栓GB5783-M10*30flZnyc-8. 8-480 Screw 2
11 4015000426 垫圈GB96. 1-10flZnyc-300HV-480 Washer 10
12 4041000043 分体法兰LGB117-310490 Flange half 4
13 4041000774 螺塞LGB135-01422 Plug 1
14 4041000767 O形圈LGB168-11124 O-ring 1
15 29140019241 1
16 4030000279 3
17 4030000026 4
18 29140024641 1
19 4011001381 螺栓GB16674. 1-M10*35flZnyc-8. 8-480 Screw 2
20 4011001288 螺栓GB16674. 1-M10*50flZnyc-8. 8-480 Screw 2
21 29140017471 转斗联大腔钢管 Pipe 1
22 29140017451 转斗联小腔钢管 Pipe 1
23 4013000370 螺母GB6170-M10flZnyc-8-480 Nut 8
24 29140012931 U形螺栓 U-bolt 4
25 4041001018 底板LGB160-3040 Bracket 4
26 29140024651 转斗缸小腔胶管 Hose assembly 1
