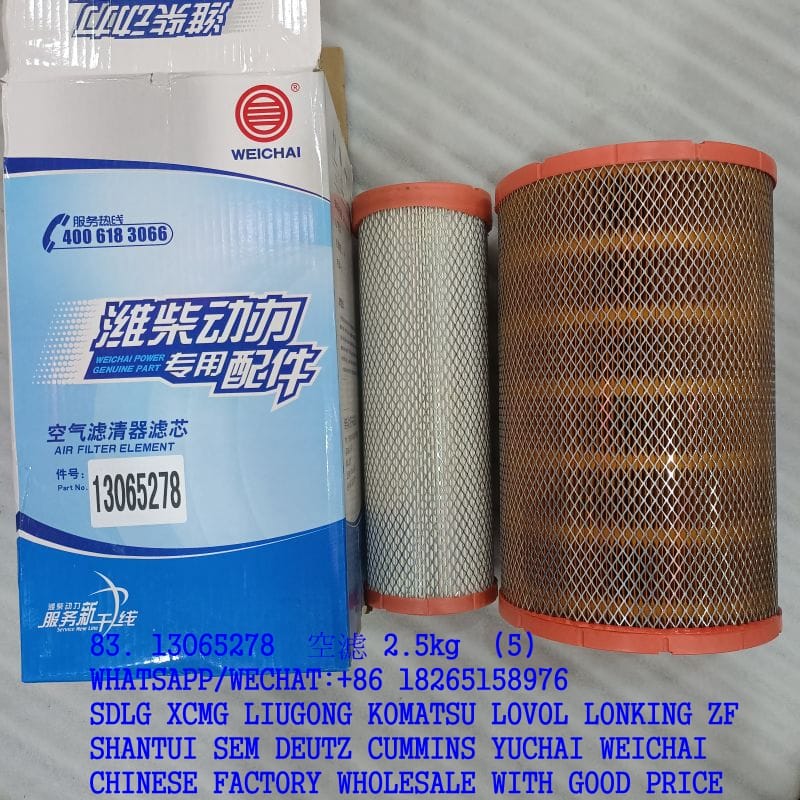

13065278 WEICHAI DEUTZ WP6 ORIGINAL AIR FILTER 4110002321001 K2438U SP149181 860135414 FOR SDLG XCMG LIUGONG PARTS

变速操纵系统
Transmission control system 98
LG933L变速操纵总成 Control mechanism
1 4110002903 LG933L变速操纵机构 Control mechanism 1
2 4011000477 螺栓GB16674-M12*35EpZn-8. 8 Bolt 1
3 4013000036 螺母GB6171-M10*1EpZn-8 Nut 1
4 4015000025 垫圈GB93-10-65Mn Spring washer 1
5 2040900039 连接机构 Connector 1
6 4016000183 开口销GB91-3. 2*22EpZn-Q235A Split pin 1
7 4016000143 销轴GB882-B8*26EpZn-35 Clevispin 1
8 3040900107 拨叉 Fork 1
9 29050026031 倒挡传感器接头 Nipple 1
10 29060009641 垫板 Plate 1
Transmission control system 100
LG933L变速操纵总成(130501) Control mechanism
1 4110000172006 手球LGH9530001 Handle ball 1
2 4110000172007 手柄组件LGH9530002 Bracket 1
3 4110000172008 盒罩LGH9530003 Cover 1
4 4110001680004 轴组件LGH9530004 Shaft 1
5 4110000172026 M10螺母RM-006-01 Nut 1
6 4110000746003 M16尼龙帽LGH9530016 M16 nyong bonnet 1
7 4110000172027 M36螺母LGH9530005 Nut 1
8 4110000746004 M5螺栓LGH9530006 Bolt 7
9 4110001680005 953N铝盒LGH953N0004 Cover 1
10 4110002868002 固定板4110001488-01 Plate 1
11 4110000172029 M8×1. 25-30螺栓LGH9530009 Screw 2
12 4110002042020 弹垫Φ8 TD-002 Washer 2
13 4110002042019 平垫Φ8 PD-002 Washer 2
14 4110000172030 六方头销轴LGH9530010 Pin 1
15 4110000172031 1
16 4110001680006 1
17 4110000172032 1
18 4110001680007 1
19 4110001680008 齿条筒LGH9530014 Rack sleeve 1
20 4110002903001 软轴总成LGHR933L0001 Control cable 1
21 4120002148013 M8螺母RM-001 Nut 2
22 4110001119007 软轴支架连接板LGH9330012 Bracket 1
23 4110002434008 软轴支架焊合件LGH9330013-1 Bracket 1
24 4110001119008 支架轴LGH9330014 Shaft 1
25 4110001119009 软轴支架连接板LGH9330015 Bracket 1
