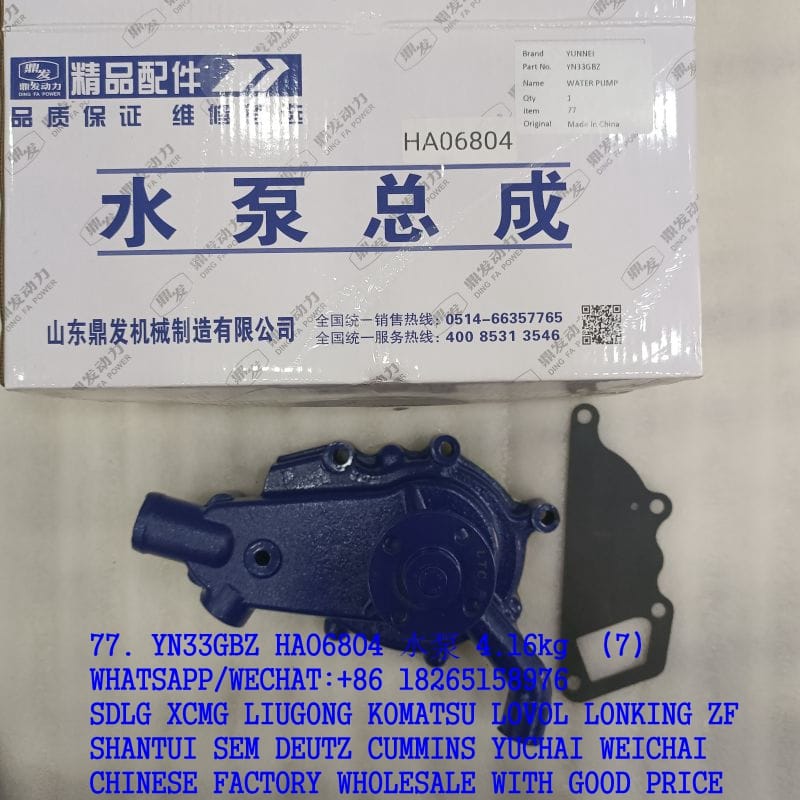

YUNNEI POWER WATER PUMP HA06804 4110003273147 HA01483 FOR YN33GBZ/YN4100QB DIESEL ENGINE FROM CHINESE FACTORY

机油冷却器总成 Oil cooler assembly
1 4110003445125 螺栓M8X30Q1840830TF2 Screw 1
2 4110000560284 螺栓M8×55 Q1840855TF2 Screw 1
3 4110004049011 水管接头J8004-1013006A Nipple 1
4 4110003445087 环箍61Q/YC147. 1-61 Clamp 2
5 4110001058008 胶管3430-1013017C Hose 1
6 4110003445088 出水管焊接组件ⅠJ49L1-1013040A Pipe 1
7 4110001194033 螺栓M8X28 Q1840828TF2 Screw 1
8 4110003445089 O形圈3. 55X45YC208-C04500S O-ring 2
9 4110003445090 冷却器盖垫片J1000-1013106 Gasket 1
10 4110002942009 机油冷却器J8L00-1013100 Oil cooler 1
11 4110003445091 螺栓M8X135Q18408135 Screw 4
12 4110000179089 六角法兰面螺栓Q1840820 Screw 1
13 4110000009006 环箍64Q67664 Clamp 2
14 4110003244008 胶管J8L00-1013002SF1 Hose 1
15 4110003445094  1
16 4110003577036  3
17 4110003445095  1
18 4110001058003  1
19 4110003783011 螺栓M10X30 Q1841030 Screw 3
曲轴箱通风装置总成 Crankcase ventilation
1 4110003445096 环箍30YC49-30 Clamp 1
2   4110003445097  通气软管JY100-1014003 Hose 1
3 4110001044206 螺栓M8X15Q1840815 Screw 1
4   4110003445098  管夹J8D00-1014005 Clamp 2
发动机起动辅助装置总成 Heater
1 4110003445099 加热器JA300-1015050 Heater 1
2   4110000560290  螺母6 Q340B06 Nut 1
油标尺总成 Oil dipstick
1 4110000561074 油标尺套管6105Q-1002081A Dipstick tube 1
2   4110003445100  油标尺组件630-1028140 Dipstick 1
