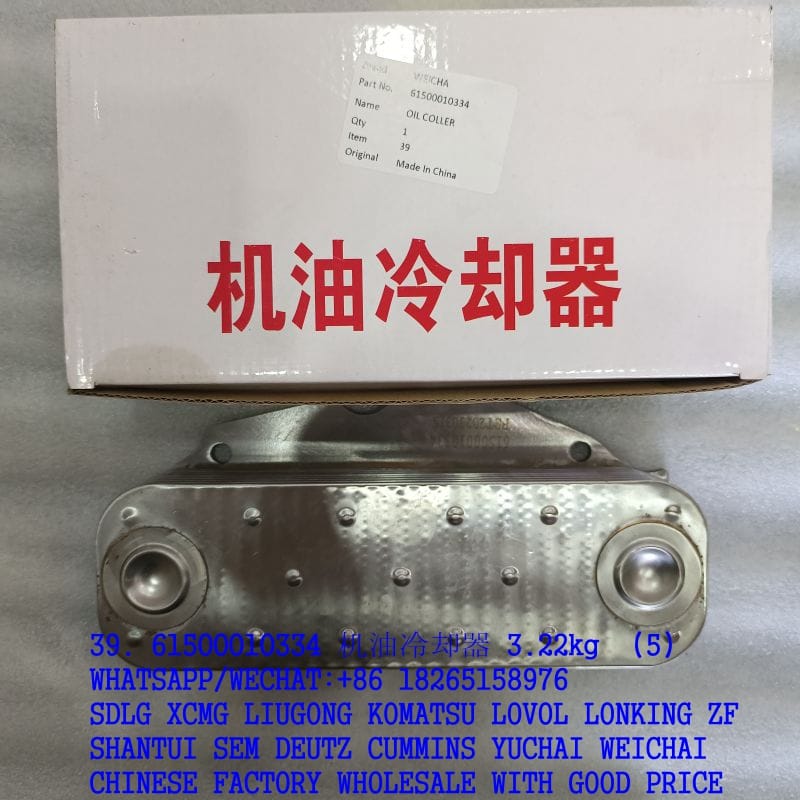

WEICHAI WP10 ENGINE 61500010334 OIL COOLER VG1500010334

ORIGINAL WEICHAI WP10 ENGINE 61500010334 OIL COOLER VG1500010334 FOR SHACMAN SINOTRUK HEARY TRUCK FROM CHINA FACTORY

回转接头总成 Turning joint
1 4014000094 螺钉GB70. 1-M12*60EpZn-10. 9 Screw 6
2 4015000168 垫圈GB97. 1-12EpZn-300HV Washer 12
3 4013000158 螺母GB889. 1-M12EpZn-8 Lock nut 6
4 4120003219 直通接头1CH-22-20 Nipple 8
5 4030000511 O形圈GB3452. 1-17. 5*2. 65G O-ring 8
6 4120008093 中央回转接头ZH0401A202 Center passage 1
7 4011000105 螺栓GB5783-M8*20EpZn-8. 8 Bolt 7
8 4015000256 垫圈GB96. 1-8EpZn-300HV Washer 7
9 4120004894 直通接头1CO-22-10 Nipple 4
10 4120004856 软管20411-22-06TZ/20411-22-06TZ*FC687- Hose assembly 4
11 4120004857 直通接头1C-22 Nipple 4
12 4120004858 软管20491-22-06TZ/20411-22-06TZ×FC687- Hose assembly 4
13 4019000023 扎丝 LG13-ZS4*185 Cable tie 10
14 28120006251 过渡板焊合 Connecting plate 1
15 4190000139 4
16 4041002699 2
17 11210007 O 形圈 2
18 4011000081 8
19 4041002384 管夹LGB169-A25*12. 5 Clamp 12
20 4015000162 垫圈GB97. 1-10EpZn-300HV Washer 8
21 4120006685 软管20411-22-06TZ/20491-22-06TZ*FC687- Hose assembly 2
22 4120003637 直通接头1CO-22-08 Nipple 2
23 4120006686 软管20411-22-06TZ/20441-22-06TZ*FC687- Hose assembly 2
24 28120004471 盖板 Cover plate 1
Working hydraulic system 202
中央回转接头ZH0401A202(320212) Center passage
1 4120008093001 回转轴ZH0401A202-0001 Rotor 1
2 4120008093002 回转体ZH0401A202-0002 Revolution body 1
3 4120008093003 挡板ZH0401A202-0003 Plate 1
4 4120008093004 端盖ZH0401A202-0004 Cover 1
5 4120008093005 堵头ZH0401A202-0005 Plug 4
6 4120008093006 O型圈ZH0401A202-0006 O-ring 4
7 4120008093007 骨架防尘圈ZH0401A202-0007 Sealing ring 1
8 4120008093008 旋转密封圈ZH0401A202-0008 Sealing ring 5
9 4120008093009 耐磨环ZH0401A202-0009 Sealing ring 2
10 4120008093010 O型圈ZH0401A202-0010 O-ring 1
11 4120008093011 内六角圆柱头螺钉ZH0401A202-0011 Screw 2
12 4120008093012 六角头螺栓ZH0401A202-0012 Screw 4
13 4120008093013 O型圈ZH0401A202-0013 O-ring 1
14 4120008093014 中央回转接头密封包ZH0401A202-MFJ Sealing ringkit 1
