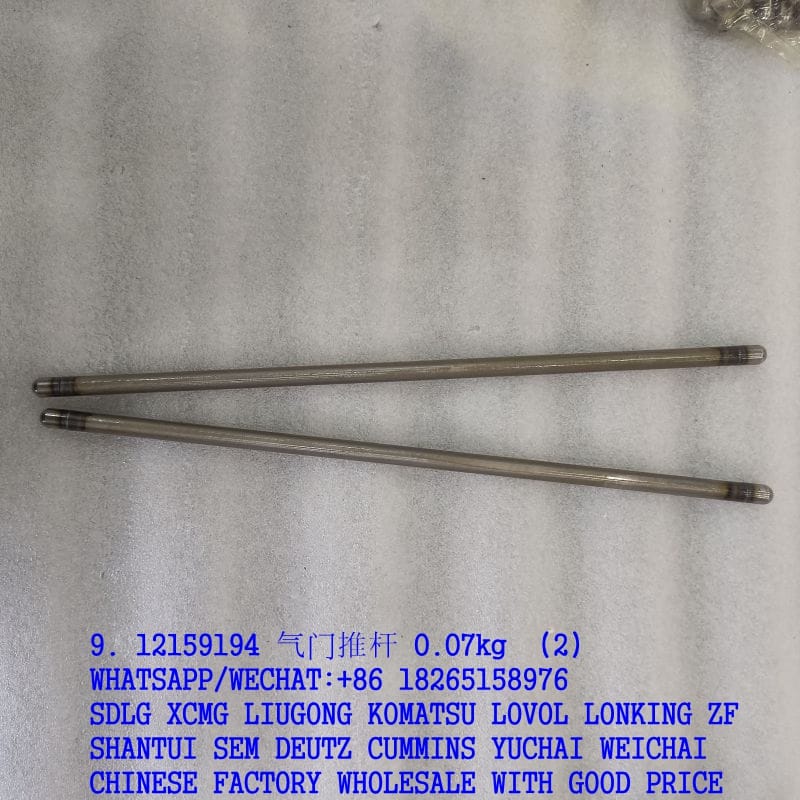

HOT SALE WEICHAI DEUTZ ENGINE PARTS 12159194 PUSH ROD SP105387 4110000054296 W010250830 FOR SDLG XCMG LIUGONG SEM PARTS

摆架总成 Swing frame assembly
1 4011000219 螺栓GB5782-M20*90EpZn-10. 9 Screw 5
2 4015000374 垫圈GB848-20EpZn-300HV Washer 18
3 4013000132 螺母GB889. 1-M20EpZn-8 Lock nut 9
4 4120004765 锁紧油缸80*60*63. 5 Lock cylinder 1
5 4120004768 铲刀摆动油缸90*50*693. 5-955. 5 Cylinder 1
6 4011000835 螺栓GB5783-M20*40EpZn-10. 9 Screw 10
7 28350001371 垫圈 Washer 2
8 4015000206 垫圈GB96. 1-20EpZn-300HV Washer 2
9 28350001301 轴套Ⅳ Sleeve 2
10 28350001321 调整垫片Ⅳ Shim 8
11 28350001381 定位销 Pin 2
12 4015000176 垫圈GB97. 1-20EpZn-300HV Washer 8
13 28350001411 端盖 End cover 4
14 28350001351 调整垫片Ⅱ Shim 4
15 28350001341 4
16 28350001361 4
17 28350001291 轴套Ⅲ 8
18 28350001271 轴套Ⅰ 2
19 4120004769 铲刀升降油缸90*50*1379. 5-493. 5 Cylinder 2
20 28350001231 右小臂 Bracket 1
21 28350001441 定位摆架 Bracket 1
22 28350001241 左小臂 Bracket 1
23 4014000415 螺钉GB70. 1-M20*145EpZn-10. 9 Screw 4
24 4011000596 螺栓GB5783-M12*35EpZn-10. 9 Bolt 16
25 4015000168 垫圈GB97. 1-12EpZn-300HV Washer 16
26 28350001281 轴套Ⅱ Sleeve 4
27 28350001311 轴套Ⅴ Sleeve 2
28 28350001431 销轴 Pin 2
29 28350001331 端盖 Cover plate 4
30 28350001982 提升油缸支架 Bracket 2
