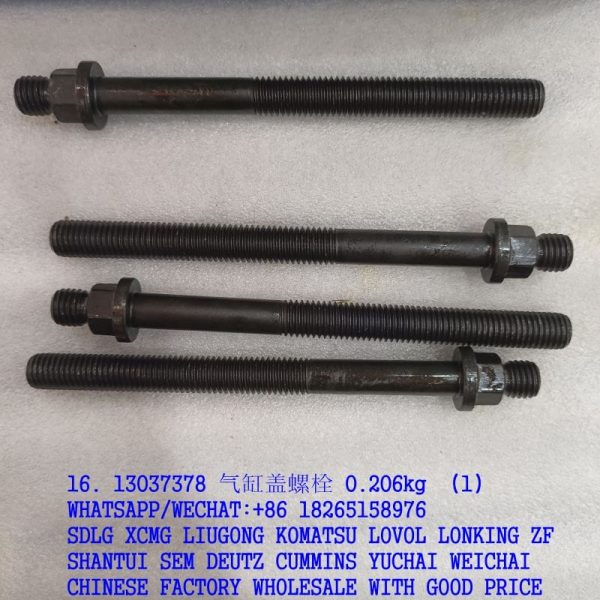

WEICHAI DEUTZ WP6G125E/TD226B ENGINE 13037378 CYLINDER HEAD BOLT 12200621 13037377 13037379 FROM CHINESE FACTORY

Working equipment 242
1 4120004771001 活塞杆241000515 Piston rod 1
2 4120004771004 防尘圈248100021 50*58*4/7 Sealing ring 1
3 4120004771005 U形圈248200017 50*65*11. 4 Sealing ring 1
4 4120004771006 O形圈248700084 100*2. 65 O-ring 1
5 4120004771007 导向环248300163 50*55*9. 7 Guide ring 1
6 4120004771008 O形圈248700085 95*3. 55 O-ring 1
7 4120004771009 挡圈248800040 95. 4*100*1. 5 Retaining ring 1
8 4120004771010 轴用组合封248600006 50*65. 5*6. 3 Sealing ring 1
9 4120004767007 缸盖243000177 Cylinder head 1
10 4120004771003 缸体242000269 Cylinder tube 1
11 4120004771011 O形圈248700002 50*3. 55 O-ring 1
12 4120004762005 活塞244000178 Piston 1
13 4120004771012 导向环248300105 95*100*9. 5 Guide ring 2
14 4120004771013 组合密封圈248500030 84. 5*100*6. 3 Sealing ring 1
15 4120004771014 螺钉414000030 Screw 1
16 4120005336004 钢球490000003 Ball 1
17 4120004771015 密封件包240000296S Sealing ringkit 1
Working equipment 244
回转油缸80*35*275-507-B Cylinder
1 4120008423001 缸筒总成24A632680 Cylinder tube 1
2 4120008423002 活塞杆24A611540 Piston rod 1
3 4120008423003 缸盖24A670290 Cover 1
4 4120008423004 支承环24G303545 Sealing ring 1
5 4120008423005 密封件-活塞杆24F003502 Sealing ring 1
6 4120006118009 密封件-防尘24D203502 Sealing ring 1
7 4120006954006 钢丝挡圈-孔用24C090070 Retaining ring 1
8 4120006310007 O形圈24K10750A O-ring 1
9 4120008298008 挡圈-O形圈24M10800C Sealing ring 1
10 4120006310009 O形圈24K308001 O-ring 1
11 4120008423006 活塞24A680360 Piston 1
12 4120006310016 密封件-活塞24P208002 Sealing ring 1
13 4120006953009 O形圈24K10350A O-ring 1
14 4120007375005 挡圈-O形圈24M10400CT335. 2x40x1. 25 Sealing ring 1
15 4120006603018 1
16 4120006316010 1
17 4120005559012 1
18 4120008423007 2
19 4120005898006 弹性挡圈-孔用-A型24T005501 Retaining ring 2
20 4120006954010 保护罩24A650190 Cover 2
21 4120004831016 螺钉-内六角圆柱头24T506121 Screw 6
22 4120005801013 油杯24V2100A1 M10x1 Grease cup 4
23 4120008423008 密封件包24A600810S Sealing ringkit 1
