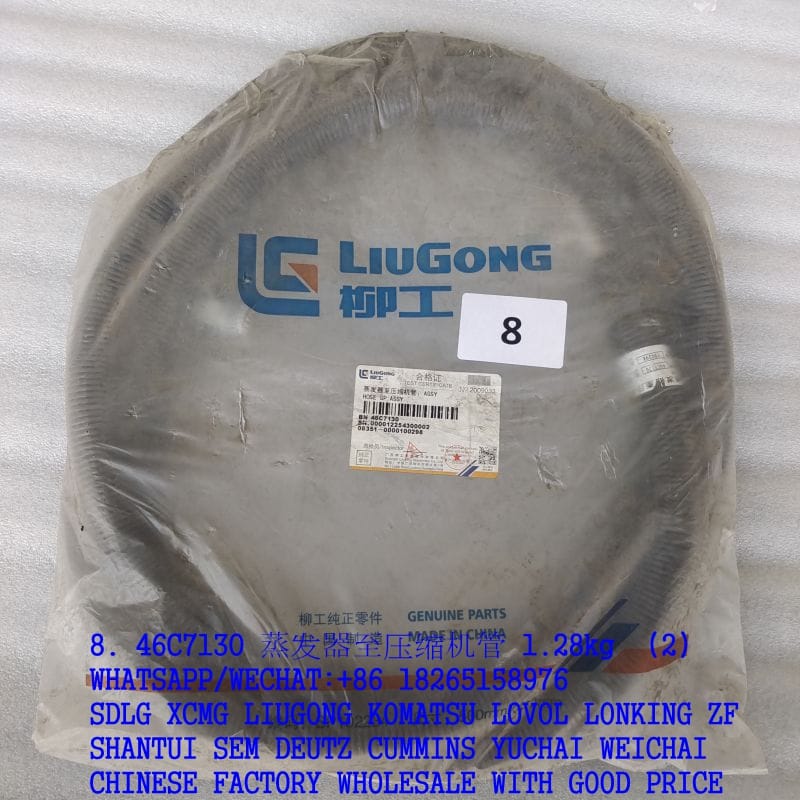

WHOLESLAE LIUGONG 46C7130 EVAPORATOR TO COMPRESSOR TUBE 1.28KG FOR CLG766A BACKHOE LOADER WITH HIGH QUALITY

51、PTO-B
标号 零件号 零件名称 PART NAME QTY.
1 3407651-52D 碗形塞片 H 711-B50 FE/ZN12C CORE HOLE PLUG H 711-B50 FE/ZN12C 1
2 3509643-52D 密封垫 SEALING RING DIN 7603-A10X13 5-CU 1
3 3407021-52D 螺堵 SCREW PLUG 1
4 3407618-52D 紧 定 螺 钉 SET SCREW GB77-M10x15-45HDIN 913-M10X15-45H 1
185 JA1002-52D-2 密封材料 SAFETY/LOCK.AGENT
52、CORE HOLE PLUG [加机油口碗型塞片]
标号 零件号 零件名称 PART NAME QTY.
1002105-52D 加机油口塞片总成 CORE HOLE PLUG 1
1 1002620-52D 碗形塞片 H 2860-A36-ST-FE/ZNPHR CORE HOLE PLUG 1
185 JA1002-52D-3 密封材料 SAFETY/LOCK.AGENT 1
53、VALVE MECHAN.COVER [气缸盖罩盖]
标号 零件号 零件名称 PART NAME QTY.
1 1003045-52D 气缸盖罩盖总成 VALVE MECHAN.COVER 1
2 1003042-52D 密封垫－气缸盖罩盖 GASKET 1
3 1003050-52D 加机油口盖总成 FILLER CAP 1
4 1003631-52D 六角头凸缘螺栓 HEXAGON BOLT EN 1662-F-M6X95-10.9-ZNAL-A 13
5 1003046-52D 迷宫 CAP 1
6 1003047-52D 压板－气缸盖罩盖 COVER STRIP 1
7 1003657-52D 撑开式铆钉 SPREADING RIVET H 2415-A6X2-8-PA66-SW 5
54、OIL COOLER BOX [机油冷却器（1）]
标号 零件号 QTY.
1013015A52D 机油冷却器及壳体总成 OIL COOLER BOX 1
1 1013040A52D 机油冷却器壳体总成 OIL COOLER BOX 1
2 1013026-52D 圆头螺钉 COLLAR SCREW 2
3 1013627-52D 螺塞 SCREW PLUG DIN908-M33X2-ST-ZNAL-A 2
4 1013628-52D 密封圈 O-SEAL H 2927-32X2 5-FPM-1-60 2
5 1013043-52D 螺纹套（滤清器接头） SCREWED BUSH （滤清器接头） 1
6 1013646-52D 螺塞 DIN 908-M10X1-ST-ZNAL-A SCREW PLUG 1
7 3509643-52D 密封垫 DIN SEALING RING DIN 7603-A10X13,5-CU 1
8 1013629-52D 密封圈 SEALING RING H2914-CM26X1 5-PTFE-SPEZIAL-BRAUN 2
13 1013035A52D 机油冷却器总成 OIL COOLER 1
17 1013632-52D 螺塞 DIN 908-M26X1 5-ST-ZNAL-A SCREW PLUG 1
18 3509634-52D 密封垫 SEALING RING DIN7603-A26X31-AL 2
20 1013633-52D 密封垫 SEALING RING DIN 7603-A26X31-CU 1
187 JA1011-52D-1 密封材料 SAFETY/LOCK.AGENT
55、OIL COOLER BOX [机油冷却器（2）]
标号 零件号 零件名称 PART NAME QTY.
1 1013619-52D 六角头凸缘螺栓 HEXAGON BOLT EN 1662-F-M8X80-10.9-ZNAL-A 10
2 1013013-52D 密封垫-机油冷却器盖板 GASKET 1
3 1013616-52D 六角头凸缘螺栓 HEXAGON BOLT EN 1662-F-M8X50-10.9-ZNAL-A 3
