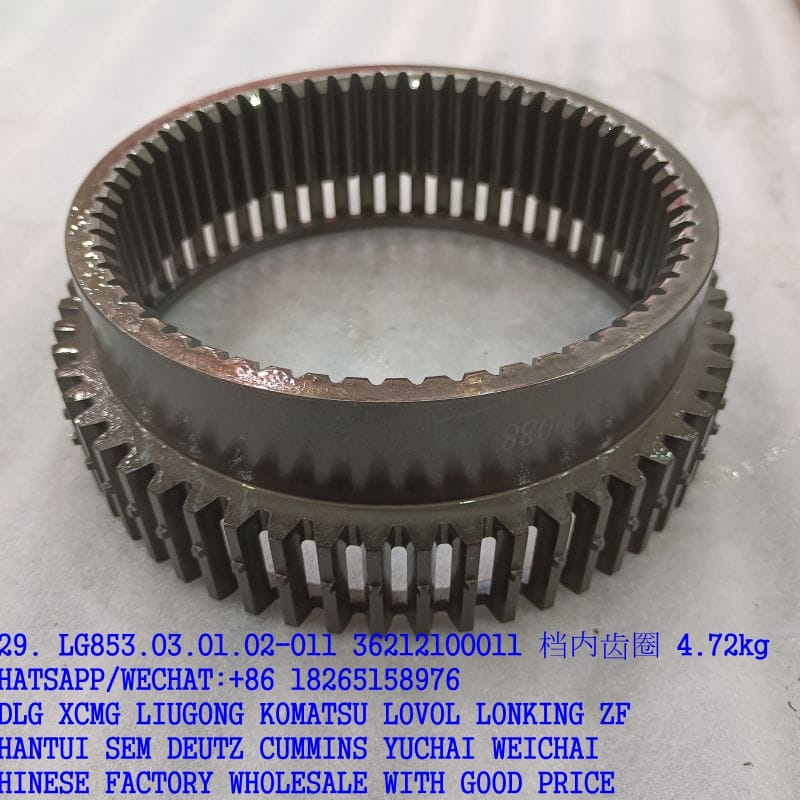

LG853.03.01.02-011 LONKING GEAR RING 36212100011 403222A BS305-46A BD15-05012 42A0002 FOR ZL50NC LG50 CDM855 CDM856

铰接总成 Articulationass
1 29250000291 通油螺栓 Bolt 2
2 28220003551 上铰接轴 Steering knuckle 1
3 28220003561 上定位板 Plate 1
4 4011000993 螺栓GB5783-M10*25EpZn-10. 9 Bolt 6
5 28220003571 隔环 Spacer 1
6 4021000243 关节轴承GB9163-GE80ES Spherical plain bearing 2
7 4030000953 O型圈94. 8*3. 53GB3452. 1-82 O-ring 4
8 28220003581 垫板 Washer 2
9 4011001089 螺栓GB5783-M24*65EpZn-10. 9 Screw 2
10 28220003591 下铰接轴 Steering knuckle 1
11 28220003601 定位套 Spacer 1
12 28220003611 下定位板 Plate 1
13 4011001066 螺栓GB5783-M10*65EpZn-10. 9 Screw 6
14 28220003621 下固定板 Plate 1
15 28220003631 隔套 1
16 28220003641 衬套 1
17 29250000301 垫片 4
18 28220003911 2
19 29250000311 管夹 Clamp 2
20 4014000024 螺钉GB818-M6*10EpZn-4. 8 Screw 4
21 4015000035 垫圈GB93-6-65Mn Spring washer 4
22 4030000065 油杯JB7940. 1-M10*1 Lubricating nipple 2
Frame system 388
后车架总成 Rear frame assembly
1 28230018232 后车架总成 The rear frame assembly Y 1
