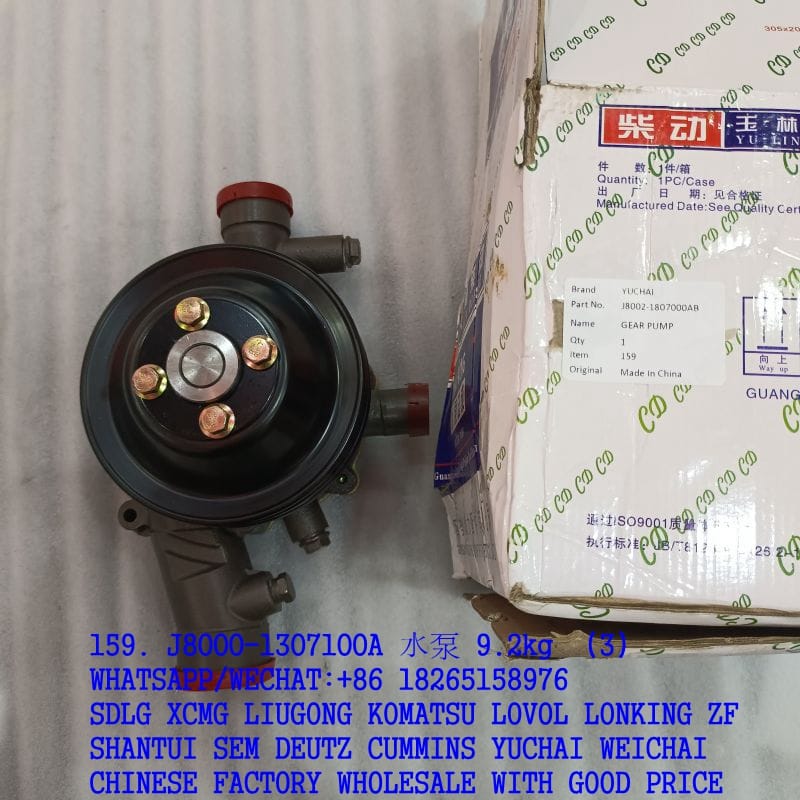

J8000-1307100A ENGINE WATER PUMP 6QAJ-1307010D J3600-1307020A J3600-1307020 YUCHAI YC6J125Z DIESEL ENGINE

Brake system 204
驻车制动总成 Stopping device
1 4016000151 销轴GB882-B10*30EpZn-35 Clevispin 1
2 4016000183 开口销GB91-3. 2*22EpZn-Q235A Split pin 1
3 29230005021 支架 Bracket 1
4 4120007693 驻车操纵机构总成LG23-933C Parking brake hand-op 1
5 4011000455 螺栓GB16674-M8*25EpZn-8. 8 Bolt 4
Brake system 206
操纵机构总成(130501) Control mechanism
1 4110002042001 镀铬头LGS9530001 Release button 1
2 4110002042002 弹簧LGS9530004 Spring 1
3 4120002616001 手柄套LGS9530007 Sleeve 1
4 4110002042004 平垫Φ8*Φ17*1. 5 PD-002-1 Washer 1
5 4120003754003 钢丝钩LGS9530009 Hook 1
6 4120003754002 手柄焊合件LGS9530000b Handle 1
7 4120003755003 防尘套LGS9530015 Rubber cover 1
8 4110002042008 棘钩LGS9530008 Hanger 1
9 4110002042007 销子Φ8*33 LGS9530006 Pin 1
10 4110002042019 平垫Φ8 PD-002 Washer 2
11 4110002042009 销子Φ8*28 LGS9530003 Pin 1
12 4110002042010 内接头LGS9530013 Nipple 1
13 4110002042014 螺栓M8-15 LGS9530011 Screw 1
14 4110002042020 弹垫Φ8 TD-002 Washer 1
15 4110002042012 1
16 4110002042013 1
17 4110002042011 1
18 4120003755005 1
19 4110002042016 开关罩LGS9530010 Switch box 1
20 4120000988002 开关总成LGS9530012 Switch 1
21 4120005364001 螺栓M6-12 LGC9530014 Screw 6
22 4120003754001 手刹盒焊合件LGS9530000c Brake chamber 1
23 4120003754005 压线片LGS9530014 Clamping plate 1
24 4120003752001 拉索总成LGSR9180001 Break wire 1
车架
Frame 210
前车架 Front frame
1 29240033121 前车架 Front frame 1
Frame 212
前车架附件 Front frame system
1 4016000043 开口销GB91-8*80EpZn-Q235A Split pin 1
2 29250008711 开槽螺母 Nut 1
3 29250011291 套 Sleeve 1
4 4043000055 防尘圈LGB307-80 Sealing ring 2
5 29250011261 盘 Flange 1
6 29250011281 套 Sleeve 1
