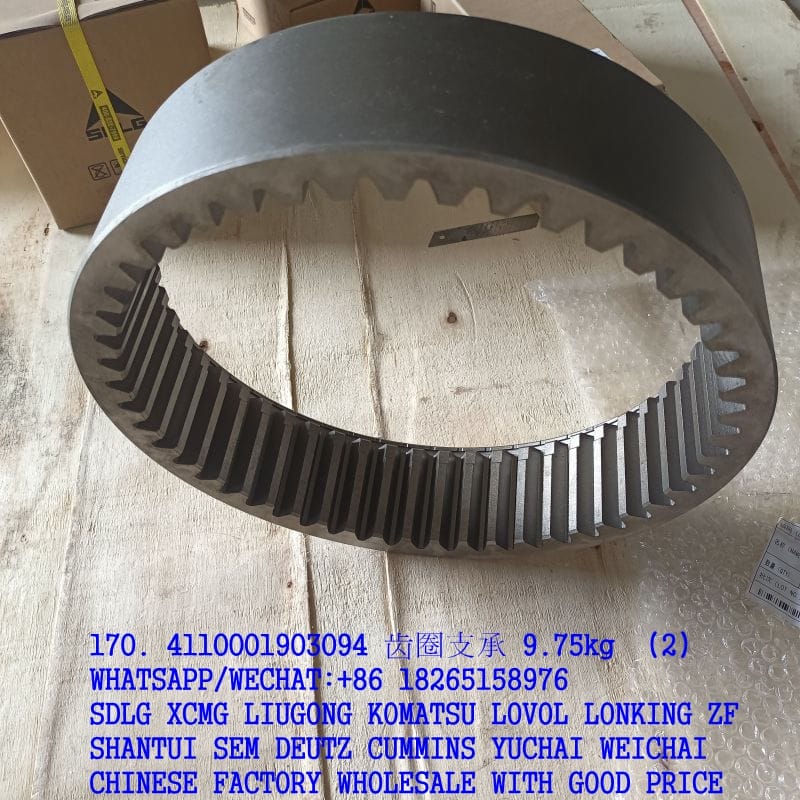

4110001903094 SDLG GRADER RING GEAR SUPPORT W046100201 77500940 SP109918 SP105309 FOR G9190/G9220

Implement hydraulic system 154
多路阀(370142) Control valve assembly
1 4120001133007 阀体HV25. 2 Valve body 1
2 4120002279136 阀杆QHV25. 2(13. 2. 5) Valve rod 1
3 4120002038111 销轴22010300110 Weld pin 2
4 4015000168 垫圈GB97. 1-12EpZn-300HV Washer 2
5 4016000035 开口销GB91-4*20EpZn-Q235A Split pin 2
6 4120002279137 阀杆OHV25. 2(12. 11. 9) Valve rod 1
7 4014000024 螺钉GB818-M6*10EpZn-4. 8 Screw 8
8 4015000207 垫圈GB97. 1-6EpZn-300HV Washer 8
9 4120002432110 压板 22013501110 Laminated board 2
10 4120002279138 防尘圈HV25. 2 Sealing ring 2
11 4120002038124 堵塞22011000110 Plug 1
12 4030000013 O形圈GB1235-32*3. 1 O-ring 1
13 4120002038108 O型圈29. 5*3. 55 GB3452. 1-43010100501 O-ring 4
14 4120002038104 安全阀组件HV32. 2-46000000300 Relief valve 1
15 4014000238 8
16 4015000036 8
17 4120002279139 1
18 4120002279140 1
19 4120002038110 O型圈16*2. 4 GB1235-43010100200 O-ring 1
20 4120002038125 堵塞22011000210 Plug 1
21 4030000149 O形圈GB1235-35*3. 5 O-ring 2
22 4120002038126 堵头22011600110 Plug 2
23 4120002038105 过载阀组件HV32. 2(12MPa) -46000000200 Control kit 1
24 4120002038118 弹簧22010400310 Spring 2
25 4120002038127 单向阀22011800110 Check valve 2
26 4030000760 O形圈GB1235-50*3. 1 O-ring 1
27 4120002279141 油口堵塞(一)03001-10026 Plug 5
28 4120002279142 油口堵塞(二)03002-10040 Plug 1
29 4120002432103 标牌04204-13050-44040200400 Name plate 1
30 4019000103 P-铆钉GB827-2*5-BL2 Rivet 2
31 4120002279143 过载阀组件HV32. 2(18. 5-19MPa) – Control valve 1
