SDLG LGB680 BACKHOE LOADER PARTS CATALOG

HYDRAULIC TANK ASSEMBLY B6800I16 – LGB680 BACKHOE LOADER PARTS CATALOG 1 2610000102 油箱体 OIL TANK 1 2 2902000108 法兰盖 FLANGED CAP 2 3 2902000109 垫圈 SPACER 3 4 4011000474 螺栓 GB16674-M10*25EpZn-8.8 BOLT GB16674-M10*25EpZn-8.8 18 5 4120000093 液位计 OIL-LEVEL MLTER 1 6 4011000458 螺栓 GB16674-M8*20EpZn-8.8 BOLT GB16674-M8*20EpZn-8.8 4 7 4120000081 液压空气过滤器 QUQ2.5b HVORAUL IC&AIR FILTER 1 …

HYDRAULIC TANK ASSEMBLY B6800I16 – LGB680 BACKHOE LOADER PARTS CATALOG Read More »

BACKHOE OPERATION MECHANISM B6800I15 – LGB680 BACKHOE LOADER PARTS CATALOG 1 4016000183 开口销 GB91-3.2*22EpZn-Q235A PIN GB91-3.2*22EpZn-Q235A 8 2 2612000107 连接叉 YOKE 8 3 4016000143 销轴 GB882-B8*26EpZn-35 PINSHAFT GB882-B8*26EpZn-35 8 4 4013000007 螺母 GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8 24 5 2612000131 拉杆 LINK ROD 4 6 4011000508 螺栓 GB5786-M18*1.5*30EpZn-8.8 BOLT GB5786-M18*1.5*30EpZn-8.8 4 7 2612000105 螺栓 BILT 8 8 …

BACKHOE OPERATION MECHANISM B6800I15 – LGB680 BACKHOE LOADER PARTS CATALOG Read More »

BIDIRECTIONAL HYDRAULIC LOCK B6800I14 – LGB680 BACKHOE LOADER PARTS CATALOG 1 PDF04B-01 阀体 VALVE 1 2 PDF04B-02 主阀芯 MAIN VALVE SPOOL 1 3 PDF04B-03 阀座 VALVE SECOT 2 4 CYKF01-01 弹簧 SPRING 2 5 PDF04B-04 螺塞 PLNG 2 6 GB3452.1 O 型密封圈 23.5×2.65 “O ”-RING 23.5×2.65 2 7 GB/T308-1977 钢球ф13 STEEL BALLф13 2 8 GB1235-76 …

BIDIRECTIONAL HYDRAULIC LOCK B6800I14 – LGB680 BACKHOE LOADER PARTS CATALOG Read More »

STABILIZER VALVE SECTION B6800I13 – LGB680 BACKHOE LOADER PARTS CATALOG 1 YZGB/T67-2000 螺钉 M6×10 SCREW M6×10 2 2 CDB-F20-2.11 垫板 GASKET 2 3 CDB-F20-2.10 防尘罩 DUST PROOF 2 4 GB3452.1-82 O 型密封圈 19×3.55 O-RING19×3.55 2 5 CDB-F20-3.04a 阀体 VALVE 1 6 GB/T859-1987 垫圈 6 WASHER 6 2 7 GB/T70.1-2000 螺钉 M6×14 SCREW M6×14 2 8 …

STABILIZER VALVE SECTION B6800I13 – LGB680 BACKHOE LOADER PARTS CATALOG Read More »

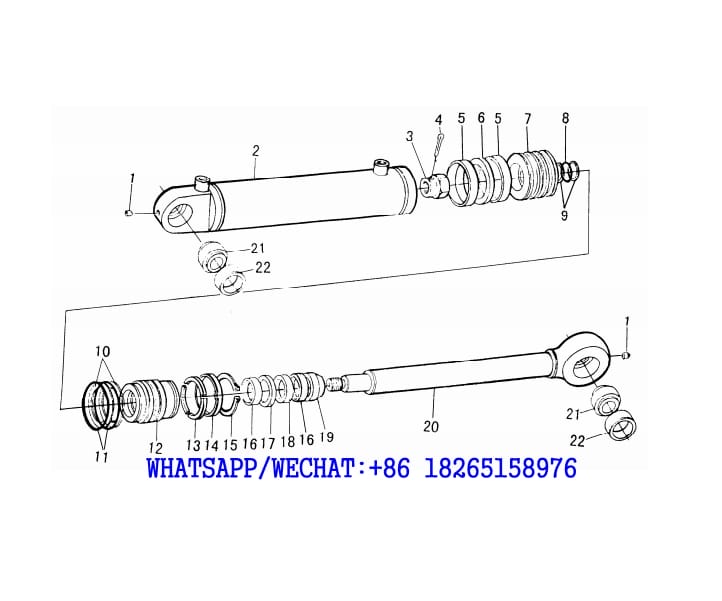

STABILIZER CYLINDER B6800I12 – LGB680 BACKHOE LOADER PARTS CATALOG 1 GB1153-1989 油杯 M10×1 OIL POT M10×1 2 2 WZ300401 缸体组件 CYLINDER 1 3 WZ3004-5 锁紧螺母 LOCK NUT 1 4 GB/T91-2000 开口销 5×60 SPLIT PIN 5×60 1 5 导向环（90×15×2.5） GUIDE RING（90×15×2.5） 2 6 CKW0900 格莱圈 d90 SEALRING d90 1 7 WZ3004-6 活塞 PISTON 1 8 GB1235-76 …

STABILIZER CYLINDER B6800I12 – LGB680 BACKHOE LOADER PARTS CATALOG Read More »

BOOM CYLINDER (BACKHOE) B6800I11 – LGB680 BACKHOE LOADER PARTS CATALOG 1 WZ23007-7 挡套 BUSHING 1 2 GB9190-1990 关节轴承 GE50ES JOINT BEARING GESOES 1 3 GB/T79-2000 螺钉 125×120 SCREW M8×12 1 4 GB/T5782-2000 螺栓 M16×70 BOLT M16×70 8 5 GB/T93-1987 垫圈 16 WASHER 16 8 6 WZ93-1987 导向套 GUIDE SLEEVE 1 7 GB1235-76 挡圈 d125×120 SNAP …

BOOM CYLINDER (BACKHOE) B6800I11 – LGB680 BACKHOE LOADER PARTS CATALOG Read More »

CROWD CYLINDER B6800I10 – LGB680 BACKHOE LOADER PARTS CATALOG 1 WZ23007-7 挡套 BUSHING 2 2 GB9190-1990 关节轴承 GE50ES JOINT BEARING 2 3 GB/T79-2000 螺钉 M8×12 SCREW M8×12 1 4 GB1153-1989 油杯 M10×1 OIL POT 2 5 WZ3007-5 杆头 ROD RING 1 6 CK63 防尘圈 DUST RING 1 7 Yxd(75×63×14) Yx 密封圈 SEAL RING 1 8 …

CROWD CYLINDER B6800I10 – LGB680 BACKHOE LOADER PARTS CATALOG Read More »

BACKHOE CYLINDER B6800I9 – LGB680 BACKHOE LOADER PARTS CATALOG 1 GB1153-1989 油杯 M10×1 OIL POT M10×1 2 2 WZ300801 缸体组体 CYLINDER INODULE 1 3 WZ3008-1 螺母 NUT 1 4 GB/T91-2000 开口销 5×55 SPLIT PIN 5×55 1 5 DXH90×15×2.5 导向环 GUIDE RING 2 6 CKW0900 孔用组合密封 COMBINED SEAL RING 1 7 WZ3008-2 活塞 PISTON 1 8 …

BACKHOE CYLINDER B6800I9 – LGB680 BACKHOE LOADER PARTS CATALOG Read More »

SWING CYLINDER B6800I8 – LGB680 BACKHOE LOADER PARTS CATALOG 1 WZ300501 缸体组件 CYLINDER 2 WZ3002-4 锁紧螺母 LOCK NUT 3 GB/T91-2000 开口销 5×5.5 SPLIT PIN 5×5.5 4 DXH90×15×2.5 导向环 GUIDE RING 5 CKW0900 孔用组合密封圈 COMBINED SEAL RING 6 WZ3005-2 活塞 PISTON 7 GB1235-76 O 型密封圈 40×3.1 O-RING 40×3.1 8 挡圈 a40×35 SNAP RING a40×35 9 挡圈 …

SWING CYLINDER B6800I8 – LGB680 BACKHOE LOADER PARTS CATALOG Read More »

OIL INLET VALVE SECTION (BACKHOE) B6800I7 – LGB680 BACKHOE LOADER PARTS CATALOG 1 CDB-F20-1.11 主安全阀 MAINRELIEF VALVE 1 2 CDB-F20D-1.01 进油阀体 VALVE 1 3 GB3452.1-82 O 形密封圈 26.5×2.65 O-RING 26.5×2.65 1 4 CDB-F29-2.09 螺塞 PULG 1
